Custom Laravel Pulse Cards

Livewire mascot dives into underwater of treasure chest that Pulse extends to us.
Image by Annie Ruygt converts Docker images to fast-booting VMs and runs them globally. supports Laravel! Check us out.

Pulse delivers a dashboard of application metric cards. Beyond these are reusable templates and a record-and-aggregation system to help us craft custom cards tailored to our very needs.

A Custom Requirement: Requests Per Machine

In a previous article, we configured our Fly Machines to run pulse:check to capture and display data for the Pulse servers card. This gave us insight into the CPU, Memory, and Storage usage of each of the Fly Machines serving our application:

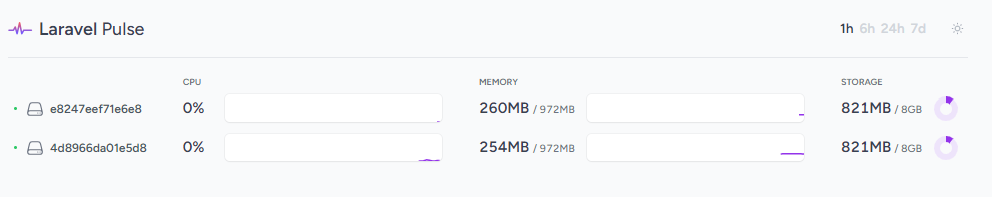

The Pulse dashboard customized to only display the servers card. The servers card contain two entries of Fly Machine server stats: CPU, Memory, Storage.
Two Fly Machines’ server metrics are listed in Pulse’s servers card.

This time around, we want to display a card tallying requests received by each Fly Machine. Since Laravel Pulse doesn’t have a default card to display this information, we’ll have to create our own card for this.

And get this. We won’t have to create our card from scratch. Pulse enables us to create custom cards built on top of its Livewire Card component, and its data recording and aggregation system.

Let’s dive in!

Displaying a New Card

Pulse’s cards are built using Livewire. To display a custom Pulse card, all we have to do is create a new Livewire component that extends Pulse’s base Livewire Card component:

/* app/Livewire/RequestsReceived.php */

namespace App\Livewire;

+  use Laravel\Pulse\Livewire\Card;

+  class RequestsReceived extends Card
    public function render()
        return view('livewire.requests-received');

In creating the corresponding view displaying our card, we’ll take plenty inspiration from Pulse’s available cards. We’ll use existing pulse blade components for a similar look and feel with the rest of the dashboard:

This blade component can receive parameters like cols and rows to determine the spatial division of the card.

class is also available to allow us to specify additional classes we’d want to map to the component.

<!-- resources/views/livewire/requests-received.blade.php -->

<x-pulse::card :cols="$cols" :rows="$rows" :class="$class" >
    <x-pulse::card-header name="Request Distribution">

    <x-pulse::scroll :expand="$expand">
        Display table Showing requests per Machine

Finally, include this card in our pulse dashboard view so we can glimpse it:

/*resources/views/vendor/pulse/dashboard.blade.php */

    <livewire:pulse.servers cols="full" />
+   <livewire:requests-received cols="full" />

Data to Display

Of course, the card currently has no data to display yet. Remember, we want info on the requests received by each machine. To display that information, we have to first get a hold of it.

We can retrieve this in two ways: using’s metrics API or manually capturing requests and recording them using Pulse’s recording system.

That’s right! provides access to metrics about our application running on its platform. We can query this info with a call to the Fly endpoint and display it in our Pulse Card. Here’s a repository which displays metrics from the Metrics API in a custom Pulse card.

On the other hand, we can also capture requests received by our Fly Machines manually. Then we record these through Pulse’s data capture and aggregation system, then display that. Yup, that’s what we’re doing today.

Capturing Metrics with Pulse

To record requests per Machine via Pulse, we have to first intercept all requests, and capture the Fly Machine ID that receives each request.

To do so, we create a global middleware from where we install our recording logic:

/* app/Http/Middleware/RecordRequest.php */

use Closure;
use Illuminate\Http\Request;
use Symfony\Component\HttpFoundation\Response;

+ use Laravel\Pulse\Facades\Pulse;

class RecordRequest
    public function handle(Request $request, Closure $next): Response
+       $machineId = config(

+       Pulse::record('machine_requests', $machineId, null )
+       ->count();

        return $next($request);

Above we first identify the Machine that received the request. We do this the same way Pulse identifies it: through the Pulse config server_name value. This would by default resolve in the Machine ID, which we pass to our $machineId variable.

We pass this along with two other attributes to Pulse’s record() method. “machine_requests” is what we’d want to identify the custom metric we want to record ( type of metric we want Pulse to keep track of ). $machineId identifies that the request was for a specific Machine ID ( key we can group entries of a specific type with ). Finally, null for the third to indicate no specific value to associate with the entry.

Looking at the repository of the Pulse package, it can be ascertained that a call to the Pulse::record() method eventually creates a new record in the pulse_entries table:

timestamp type key key_hash value
1706711201 machine_requests 4d8966da01e5d8 <hash_key_here> null

Next, inspect the count() method which is chained to the statement. This will result in the creation/update of a row in the pulse_aggregates table which stores the computed count aggregate value associated with a combination of columns grouping our entry above:

bucket period type key key_hash aggregate value count
1706712600 60 machine_requests 4d8966da01e5d8 <hash_key_here> count 1 null

Notice there’re some similarly named columns in both tables above. Their type, key, and key_hash seem to hold the same values. However, their value columns differ quite greatly. The pulse_entries use it for the value attribute passed during the call to record(). While pulse_aggregates stores the result of an aggregation computation into value.

With this setup, every request will create( or update ) records in the pulse_entries and pulse_aggregates tables. Each new request per machine will be recorded as individual data points in the pulse_entries table. And thanks to count(), we get an easy-to-retrieve count aggregate values for each Machine’s request tally in the pulse_aggregates table. Finally, we can display this information in our Pulse Card.

Retrieving Pulse Metrics

We now have our requests recorded in our Pulse tables above. What we want next is to display the captured information in our custom Pulse card.

First, let’s retrieve our entries for our custom "machine_requests" metric type by calling Pulse's aggregate() method:

/* app\Livewire\RequestsReceived.php  */

public function render()
      return view('livewire.requests-received',[
+          'machines' => $this->aggregate(

The aggregate() method receives two parameters. The first identifies the type of metric entries we’d want to retrieve, in which case we indicate a “machine_requests”. The second attribute lists out the aggregate values we want from each item in the retrieved list of entries. This for us is the count aggregate, as this will tell us the count of requests per machine at a given period of time.

We pass the resulting data received from the aggregate() call to a variable $machines accessible in our blade. This will allow us to display the list of Machines and their relevant request count in our corresponding view:

<!-- resources/views/livewire/requests-received.blade.php -->

<x-pulse::card :cols="$cols" :rows="$rows" :class="$class" wire:poll.5s="">
    <x-pulse::card-header name="Request Distribution">

    <x-pulse::scroll :expand="$expand">
        @foreach( $machines as $machine )
            {{ $machine->key }} = {{ $machine->count }}

Annd finally we get this:

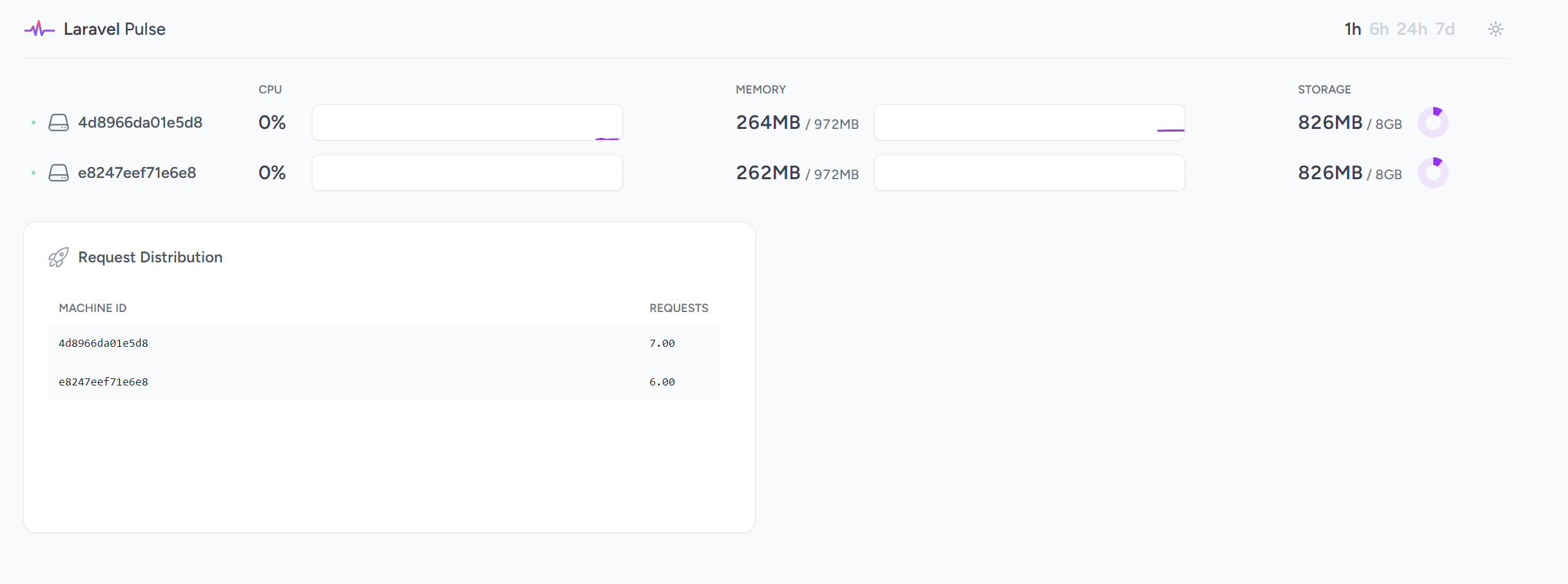

  A customized Pulse dashboard that displays the servers card and a custom "requests-received" card.
  The custom card shows two rows of entry, and the number of requests per entry in the last one hour.

Our very own, custom request-per-machine metrics, in our very own Pulse card! For a closer look into the different code snippets used above, do check out this sample repository here! ❤️ Laravel

Fly your servers close to your users—and marvel at the speed of close proximity. Deploy globally on Fly in minutes!

Deploy your Laravel app!

The Happenings Above

We needed a custom metric displayed in our Pulse dashboard, so we did a bunch of things.

First we captured requests by creating a global middleware and enclosing our recording logic on it using Pulse’s record() and count() methods. We then retrieved these metrics from Pulse’s database tables by calling Pulse’s aggregate() method. Finally, we displayed the information captured by extending Pulse’s custom Card component and making use of its existing blade components to follow after the default Pulse card theme.

With just three sections, we’ve got our very own custom Pulse metrics recorded to our needs, and displayed in our Pulse dashboard. Of course, this is a very basic rundown of the creation of Custom Pulse Cards. Please do read more about the different facets of the package’s custom cards from its official, wonderful documentation.
